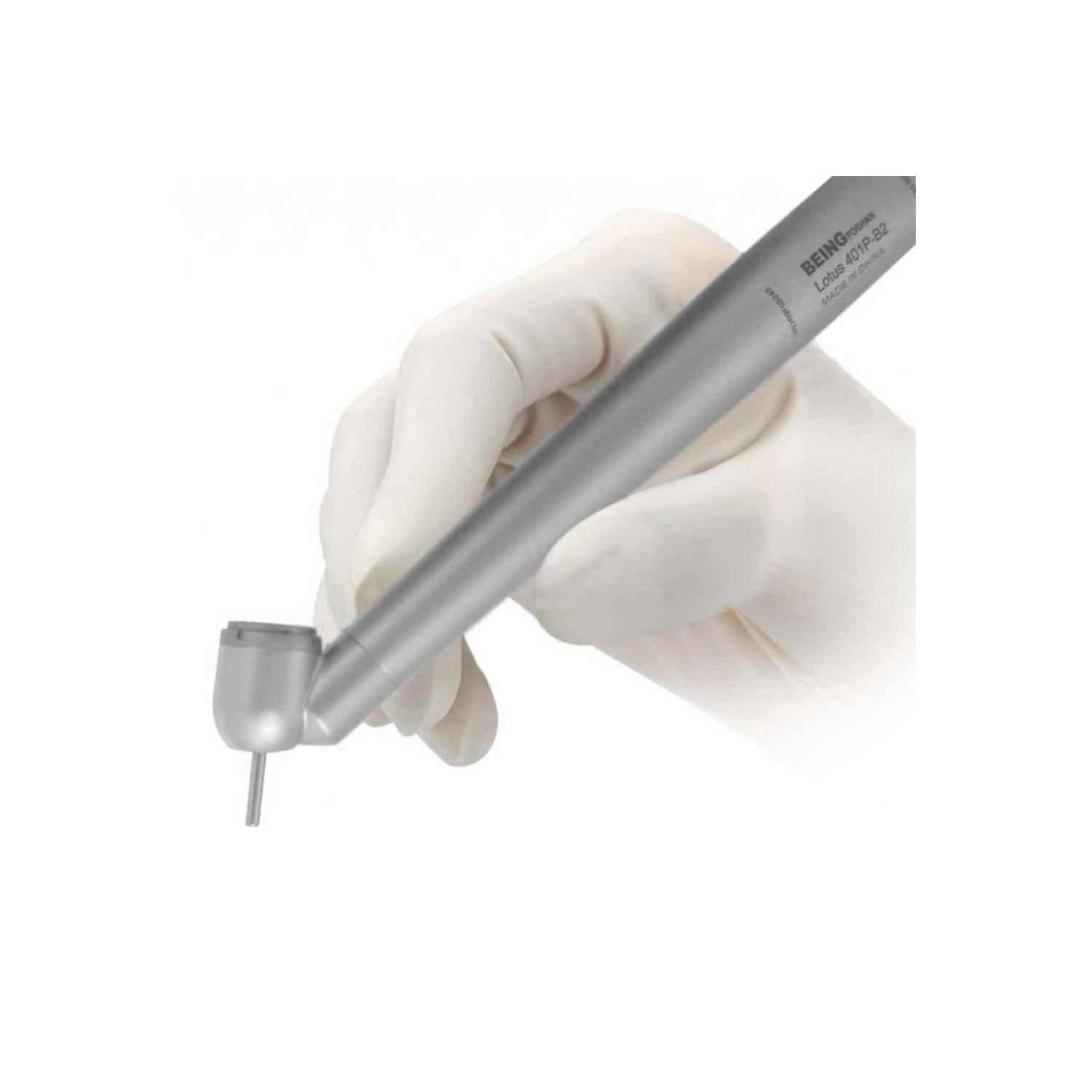

Being Foshan 45 Degree Non-LED Airotor 1P45-B2

Being Foshan 45 Degree Non-LED Airotor 1P45-B2

The Being Foshan 45 Degree Non-LED Airotor 1P45-B2 is designed for professional comfort and efficiency, significantly reducing procedural times for patients. Its specially designed head size and 45-degree angled positioning provide excellent visibility and maneuverability. The 45-degree angle also helps prevent tissue emphysema during procedures.

Features

• Push-button type for easy bur changing
• Improved eyeshot and angle for enhanced efficiency
• High-density cartridge with high cutting efficiency, low vibration, and low noise
• Ergonomically designed handle, comfortable to hold and easy to clean
• Autoclavable handpiece

Key Specifications

• Air Pressure: 180-250 KPa (1.8-2.5 kgf/cm²)
• Gas Consumption: ≥1.5 L/min
• Noise: ≤70 dB
• Rotation Range: 380,000 – 450,000 rpm
• Cooling Water Pressure: 0.2 MPa
• Max Length of Non-Rotation Part: 13.14 mm
• Handpiece Head Diameter: ø11.2 mm
• Compatible Diamond Bur: ISO1797-1 Type 3 ø1.59-1.6 mm
• Compatible Diamond Bur Length: 21–23 mm
• Handpiece Connect Method: ISO 9168, YY/T 0514
• Torque Parameter: ≥0.016 Nm

Sterilization

• Brush off excess dirt and wipe clean with alcohol-soaked cloth
• Insert the handpiece in a sterilization pouch and seal it
• Autoclavable up to 134°C
• Resistant to at least 250 cycles of high-temperature sterilization and disinfection

Lubrication

• Use oil spray or other standard oil spray after each use and/or before autoclaving

Packaging

• 1 x Airotor Handpiece

FAQs

• Q: How can an airotor cause tissue emphysema?
  A: Tissue emphysema occurs when compressed air is forced into tissue spaces or fascial planes. Any stream of air directed toward exposed soft tissues can cause this.
• Q: Does this airotor prevent tissue emphysema?
  A: Yes, the 45-degree Non-LED Airotor 1P45-B2 prevents tissue emphysema with its anti-retraction mechanism.
